Robust SMD Power Transformer with Reinforced Insulation for High-Temperature Industrial Circuits and Compact Footprint

5000
MOQ
Robust SMD Power Transformer with Reinforced Insulation for High-Temperature Industrial Circuits and Compact Footprint
traits Galerie Description de produit Parlez Maintenant.
traits
Caractéristiques
Mettre en évidence:

High-Temperature Industrial Circuits SMD Power Transformer

,

Reinforced Insulation Split Core Current Transformer

,

Compact Footprint Isolation Transformer
Informations de base
Lieu d'origine: Chine
Nom de marque: SHINHOM
Certification: RoHS
Numéro de modèle: GT06LXXA0
Documents: GT06LXXA0 _.pdf
Conditions de paiement et expédition
Délai de livraison: 2 ~ 8 semaines
Conditions de paiement: LC, T/T
Description de produit

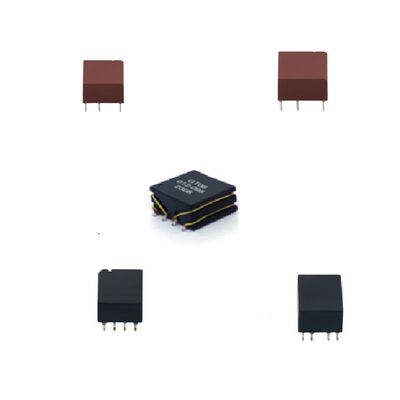

Robust & Reinforced SMD Power Transformer for High-Temperature Industrial Circuits
The GT06LXXA0 Series is a high-performance SMD power transformer engineered for demanding industrial and automotive applications. Designed to operate reliably across an extended temperature range from -40℃ to +125℃, it features reinforced insulation compliant with IEC62368-1, ensuring safety and durability in high-voltage environments. With a compact footprint and wave-solderable design, this isolation transformer delivers excellent electrical performance, including low leakage inductance and high interwinding isolation, making it ideal for DC-DC converters, power supplies, and isolated signal interfaces.
Key Specifications
Parameter Specification
Turns Ratio Options Multiple ratios available (1:1, 1:2, 8:3, 3:4, etc.) depending on model
Inductance (Pin 1-3) 538µH to 680µH (±35%) measured at 100kHz, 100mVrms
Leakage Inductance (1-3 with 4-6 shorted) As low as 0.6µH to 2.0µH max
Capacitance (Primary to Secondary) ≤ 15pF to 30pF max
DCR (Primary 1-3) 750mΩ to 1500mΩ max
DCR (Secondary 6-4) 750mΩ to 1300mΩ max
Isolation Voltage 4KVrms (550Vrms continuous)
Creepage & Clearance ≥ 8mm between primary and secondary
Operating Temperature -40℃ to +125℃
Storage Temperature -40℃ to +125℃
Wave Soldering Profile Compliant with preheat, ramp-up, critical zone, and peak temperature guidelines
MSL Rating Level 1, floor life 0.5 year under ≤30°C/60%RH
Primary Applications
Industrial Power Supplies: Isolated DC-DC modules, switch-mode power converters
Automotive Electronics: On-board chargers, battery management systems, and EV power systems
Telecom & Networking: Isolated signal interfaces, PoE (Power over Ethernet) transformers
Renewable Energy Systems: Solar inverters, energy storage converters requiring reinforced insulation
Medical & Safety-Critical Equipment: Power stages where high isolation and reliability are mandatory
Consumer & IoT Power Adapters: Compact, high-temperature capable AC-DC and DC-DC designs
