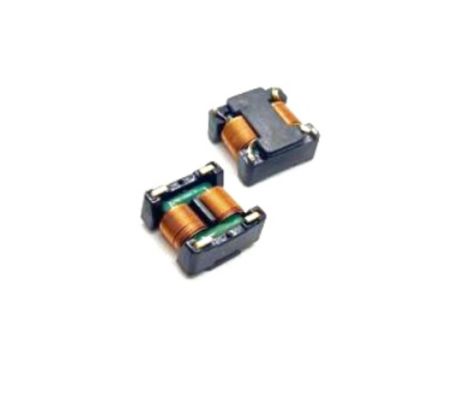

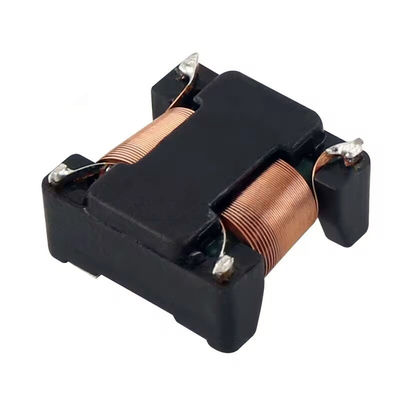

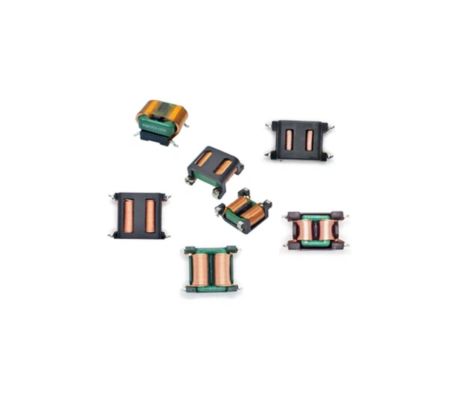

Compact SMD Common Mode Choke with High Current Capability and Superior EMI Suppression for Space-Efficient Power Supply Noise Filtering

5000
MOQ
Compact SMD Common Mode Choke with High Current Capability and Superior EMI Suppression for Space-Efficient Power Supply Noise Filtering
traits Galerie Description de produit Parlez Maintenant.
traits
Caractéristiques
Mettre en évidence:

High Current Capability Common Mode Choke

,

Superior EMI Suppression SMD Inductor

,

Space-Efficient Low DCR Choke
Informations de base
Lieu d'origine: Chine
Nom de marque: SHINHOM
Certification: RoHS
Numéro de modèle: SQS1212A
Documents: SQS1212A Series_.pdf
Conditions de paiement et expédition
Délai de livraison: 2 ~ 8 semaines
Conditions de paiement: LC, T/T
Description de produit
Compact SMD Common Mode Chokes for Power Supply Noise Suppression
Engineered for modern power electronics, the SQS1212A Series represents a line of high-performance SMD Inductors designed to effectively suppress electromagnetic interference (EMI). These Low DCR Chokes utilize a square core construction and high-permeability material to deliver high impedance at low frequencies with minimal DC power loss. Their compact SMD flat profile and superior attenuation characteristics make them an ideal, cost-effective solution for enhancing EMC performance in space-constrained applications.
Key Features
  • Space-Efficient & Reliable: Compact SMD footprint with a square core design minimizes board space usage and reduces magnetic leakage.
  • Superior EMI Suppression: High-permeability material combined with low stray capacitance ensures high impedance at low frequencies and provides excellent attenuation of common-mode noise.
  • High Current Capability: The Low DCR Choke design minimizes voltage drop and power loss, supporting high rated currents up to 3.0A for robust power handling.
  • Safety & Compliance: Construction features materials compliant with UL94V-0 flammability rating and offers high insulation resistance, meeting international safety standards. The series is also RoHS and REACH compliant.
  • Automated Production: Manufactured with automated processes for high consistency, reliability, and cost-effectiveness.
Technical Specifications
Parameter Details
Inductance Range 5mH to 20mH (Test Condition: 1.0kHz, 0.25V)
DCR (Max) 80mΩ to 220mΩ
Rated Current 1.0A to 3.0A
Rated Voltage 80Vac - 265Vac
Withstand Voltage 1.0KVac for 2 seconds
Operating Temperature -25°C to +125°C (including coil temperature rise)
Insulation Resistance 100 MΩ Min. @ 500Vdc
Recommended Power Range 60W - 150W
Applications
These versatile Common Mode Chokes are ideally suited for noise filtering in a wide array of power supply circuits and electronic devices, including:
  • Switching Mode Power Supplies (SMPS): High-density designs for LCD TVs, Power Adapters, and Battery Chargers.
  • Consumer Electronics: Effective EMI filtering in Home Appliances and various digital devices.
  • Industrial Electronics: Noise suppression in control boards, motor drives, and industrial power systems.
  • Automotive Electronics: DC-DC converters and onboard chargers where reliable performance is critical.
